ET-07 4G tracker

4G LTE vehicle tracker
ꄴPrevious： ET-60W
ꄲNext： ET-01 beta

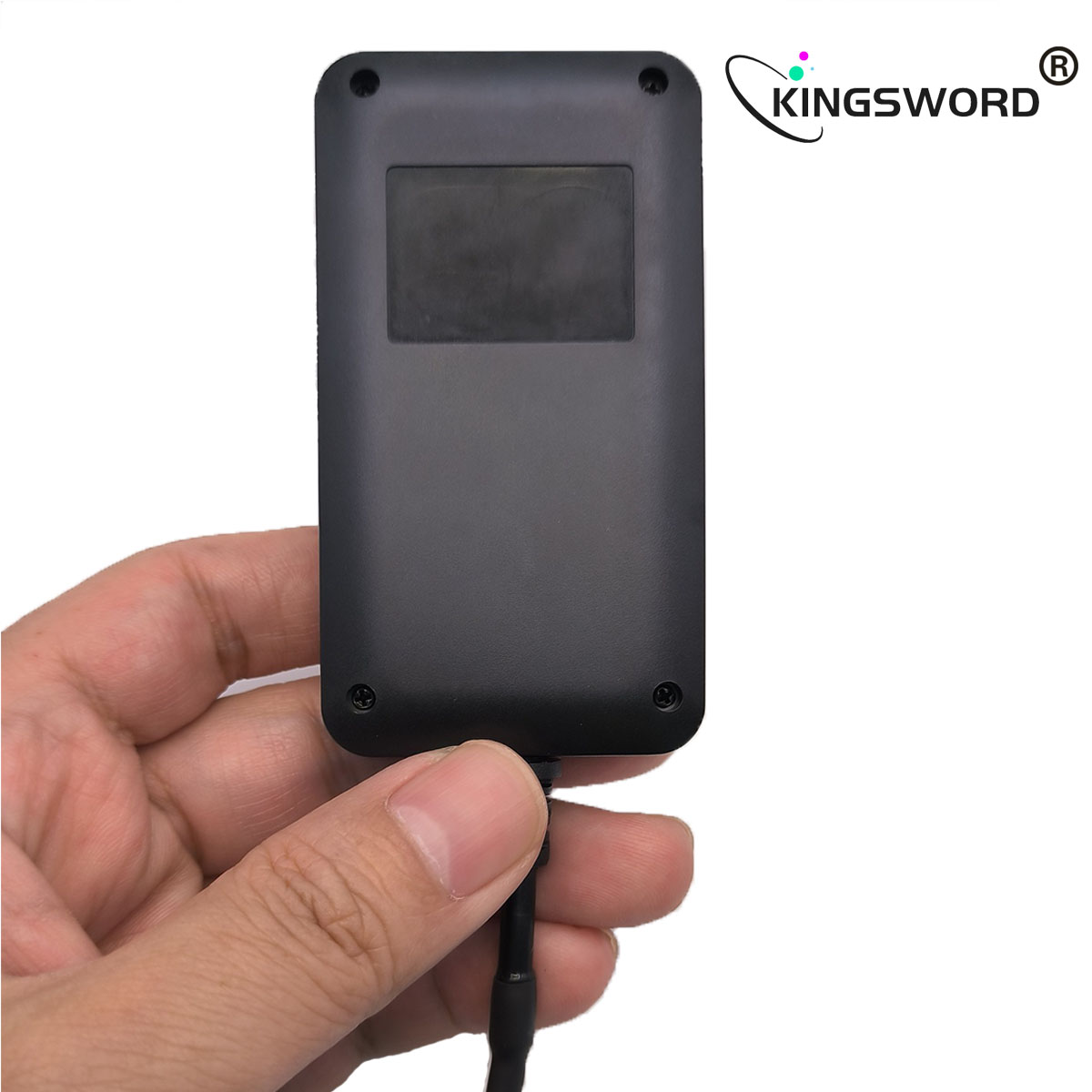

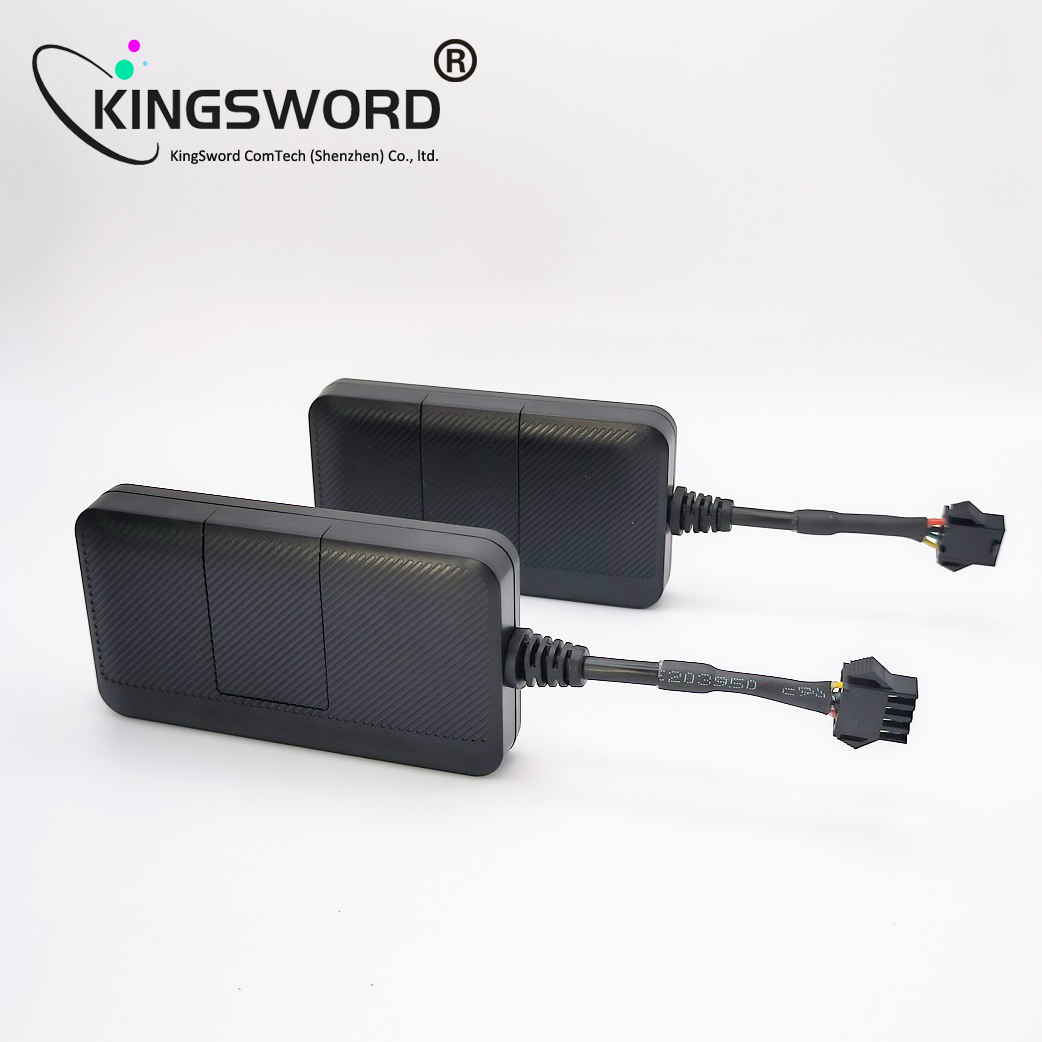

Vehicle GPS Tracker（ET-07）

Specification

size

98*51*16mm

Working Voltage

DC:7~60V

Input Fuse

2A

Working Temperature

-20~75°C

Humidity

10% to 90%

CPU

EC600U-EU

GPS features

Re-acquisition sensitivity: -160dBm

Tracking sensitivity: -162dBm

Accuracy of locating: 2~10 meters

Accuracy of speed calculation: <0.1m/s

Updating rate of locating: 1~5Hz

I/O Port

Standard: 4 cables connection

  1. Positive 8V-60V. Red wire
  2. Negative. Black wire
  3. Output positive. Yellow wire
  4. Input detection. Green wire



Extensive connections:

  1. ADC (read power voltage)
  2. Input detection #2
  3. Output negative
  4. SOS

Current

(@12V)

Sleep mode: 2~4mA

working Current: 45~120mA







Frequency bands:

LTE-FDD

B1/B3/B5/B7/B8/B20/B28

LTE-TDD

B38/B40/B41

GSM

850/900/1800/1900MHz





Installation:

1. Red wire connects to positive 7V-60V。

2. Black wire connects to ground

3. Yellow wire connects to relay device pin86. Pin85 connects to ground. Pin 30 and 87A connect to oil pump line in series.

4. Green wire connects to ACC or other alarm devices (that is to connect 7V-60V storage battery or impulse to access ACC and alarm mode)



Main features:

  1. Small size and easy installing
  2. Support GPS and Beidou system
  3. Fast and accurate locating
  4. Static drift suppression
  5. Store data automatically when no GPRS communication
  6. Built-in battery (support 3 hours working time after external power is off)
  7. Low power consumption
  8. Built-in reset controller ensures system not get stuck
  9. Support UDP & TCP communication



Main functions:

  1. Basic functions:

       Position query

       Alarm modes

       Geo fence

       Engine ignition detection

       Remote control engine power

       Mileage query and correction

       Power saving mode

       SOS (optional)

       Audio monitoring (optional)

  1. Settings:

       Data upload interval

       Time zone

       Car plate name

       SMS & GPRS switch

       Alarm SMS switch

       DNS

       IP & port

       TCP & UDP switch

  1. Alarms:

       External power off alarm

       Vibration alarm

       Movement alarm

       Geo fence alarm

       Over speed alarm

       Low battery level alarm

       SOS alarm (optional)

  1. Power saving mode:

       Sleep by time

       Wake up by shock sensor

  1. Checkings:

       Firmware version

       SIM card ICCID

       Device working status

       IMEI

  1. Other functions:

       Automatic update positions of vehicle turns

       Device reboot

       Virtual ignition by sensor

  1. Network functions:

       PC web/APP tracking

       Real time tracking

       Alarm record

       History play back
