ET-03
Specification
|
Size |
68*31*15mm |
|
DC:6~30V |
|
|
Input Fuse |
2A |
|
Working Temperature |
-20~65°C |
|
Humidity |
10% to 90% |
|
CPU |
MT2503D(260MHz) |
|
Highly precise and low noise RF transmitter for GSM/GPRS applications Transmitter outputs support quad bands: 850/900/1800/1900MHz GPRS class 12
|
|
|
GPS features |
Built-in reset controller Superior sensitivities: Acq.: -148dBm(cold) / -163 dBm(hot) Tracking: -165 dBm Ultra-low power consumption Indoor and outdoor multi-path detection and compensation Support A-GPS Max. fixed update rate up to 10 Hz |
|
I/O Port |
4 cables connection 1. Positive 6V-30V. Red wire 2. Negative. Black wire 3. Output positive. Yellow wire 4. Input detection. Green wire
|
|
Current (@12V) |
Sleep mode: below 2mA working Current: 25mA Charging current: Max<100mA |
Installation:
1. Red wire connects to positive 6V-30V。
2. Black wire connects to ground
3. Yellow wire connects to relay device pin86. Pin85 connects to ground. Pin 30 and 87A connect to oil pump line in series.
4. Green wire connects to ACC or other alarm devices (that is to connect 6V-30V storage battery or impulse to access ACC and alarm mode)
1. Small size and easy installing
2. Fast and accurate locating
3. Static drift suppression
4. Store data automatically when no GPRS communication
5. Built-in battery (support 3 hours working time after external power is off)
6. Low power consumption
7. Built-in reset controller ensures system not get stuck
8. Support UDP & TCP protocol
Main functions:
l Basic functions:
Position query
Alarm modes
Geo fence
Engine ignition detection
Remote control engine power
Mileage query and correction
Power saving mode
l Settings:
Data upload interval
Time zone
Car plate name
SMS & GPRS switch
Alarm SMS switch
DNS
IP & port
TCP & UDP switch
l Alarms:
External power off alarm
Vibration alarm
Movement alarm
Geo fence alarm
Over speed alarm
Low battery level alarm
l Power saving mode:
Sleep by time
Wake up by shock sensor
l Checkings:
Firmware version
SIM card ICCID
Device working status
IMEI
l Other functions:
Automatic update positions of vehicle turns
Device reboot
Virtual ignition by sensor
l Network functions:

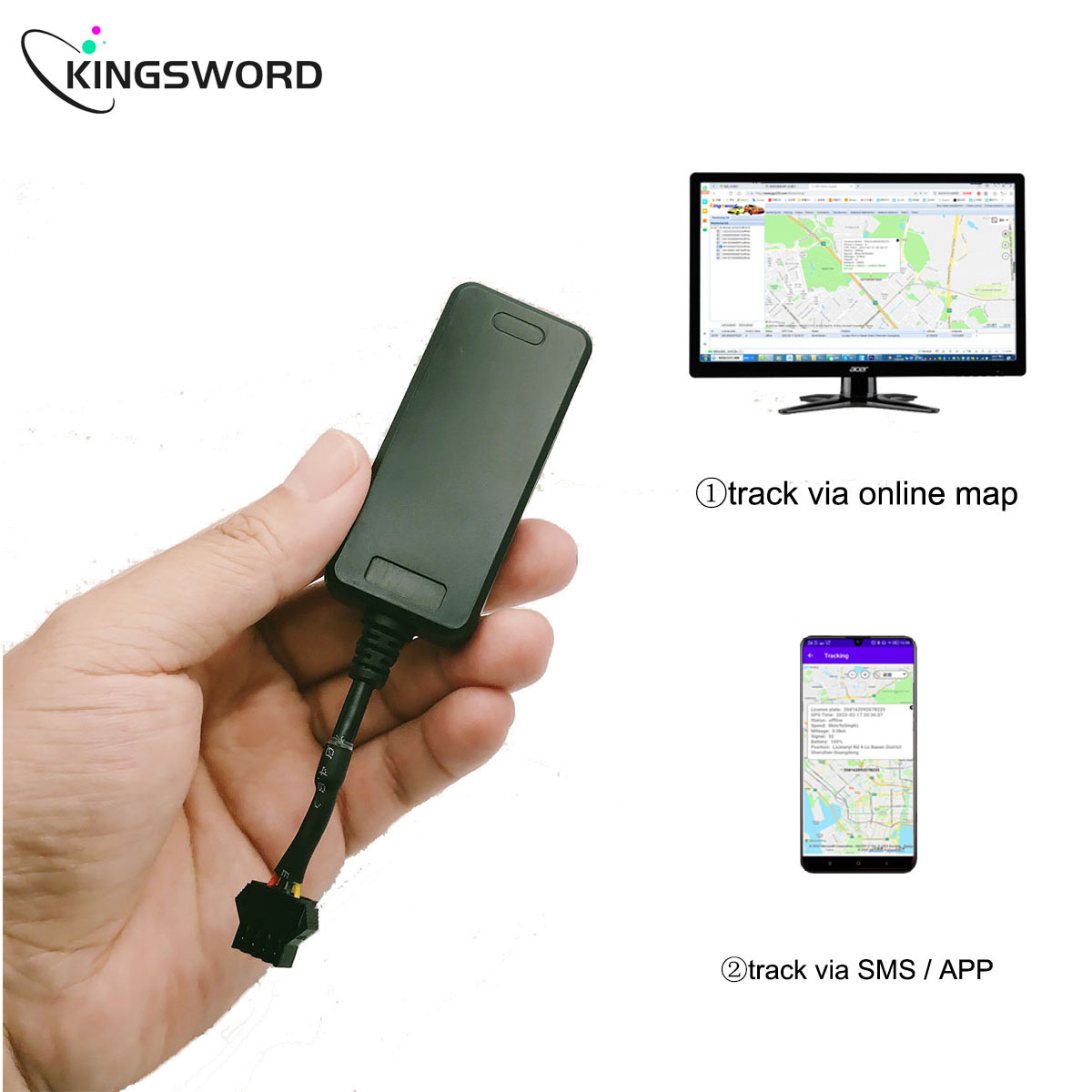

PC web/APP tracking
Real time tracking
Alarm record
History play back
