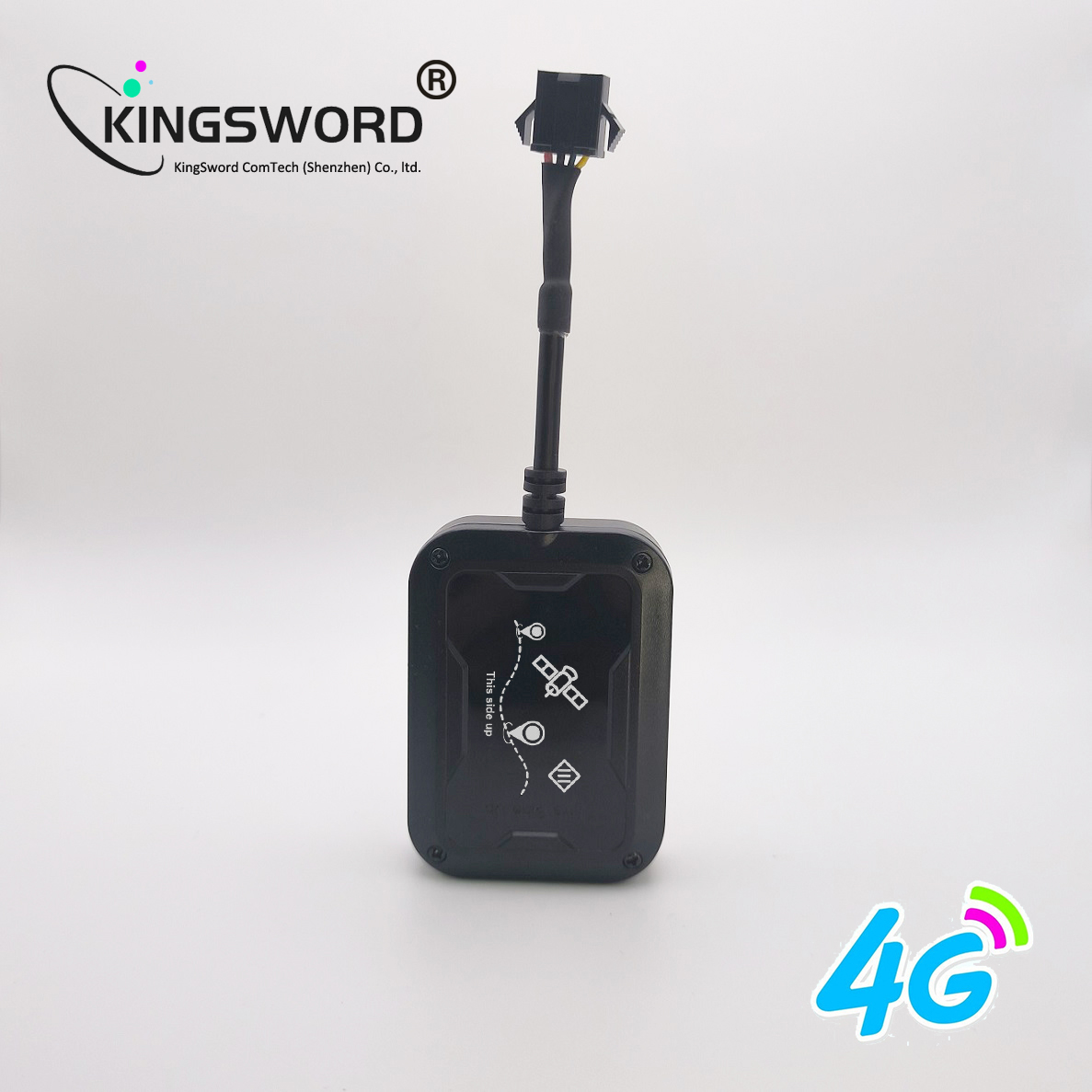

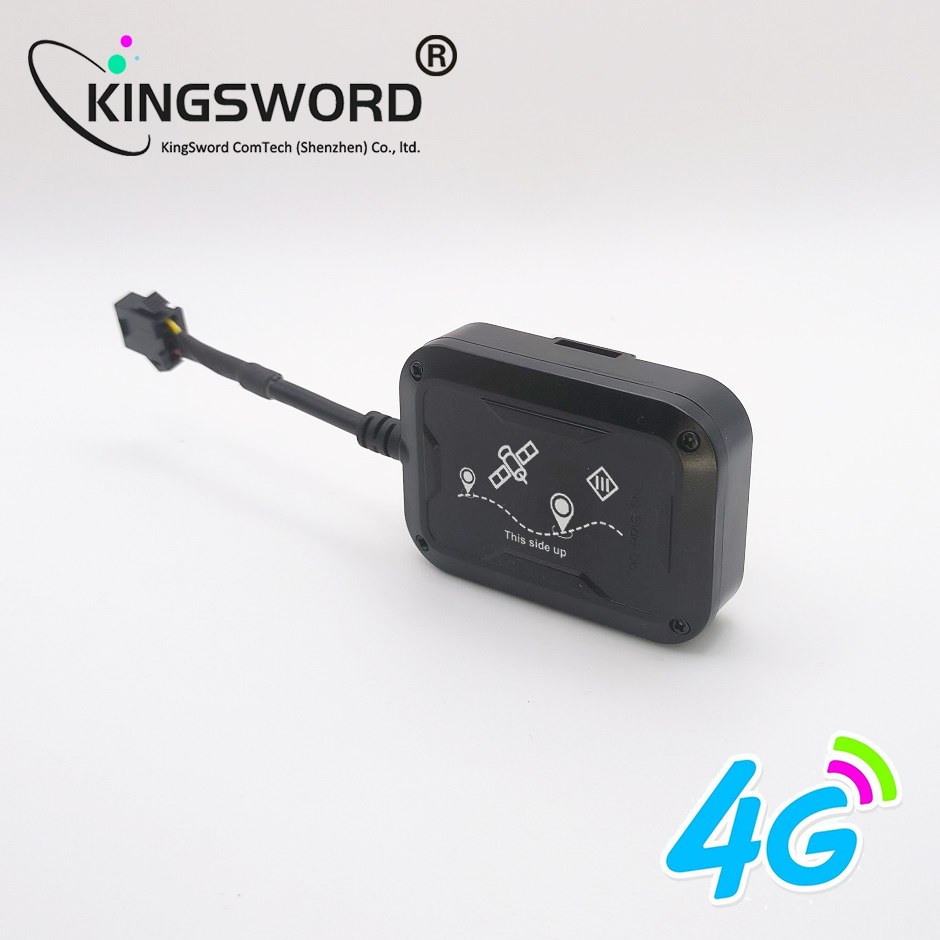

ET-80 4G tracker

Mini 4G vehicle tracking device
ꄴPrevious： null
ꄲNext： ET-60W

Vehicle GPS Tracker（ET-80x）

Specification

size

42*60*17.5mm

Working Voltage

DC:8~90V

Input Fuse

2A

Working Temperature

-20~75°C

Humidity

10% to 90%

CPU

EG800Q-EU

EG800Q-NA

GPS features

Re-acquisition sensitivity: -160dBm

Tracking sensitivity: -162dBm

Accuracy of locating: 2~10 meters

Accuracy of speed calculation: <0.1m/s

Updating rate of locating: 1~5Hz

I/O Port

Standard: 4 cables connection: (standard)

  1. Positive 8V-100V. Red wire
  2. Negative. Black wire
  3. Output negative. Yellow wire
  4. Input detection. Green wire

Optional:

   SOS

Current

(@12V)

Sleep mode: 2~4mA

working Current: 25~50mA







Frequency bands:

LTE-FDD: B1/ 3/ 5 /7/ 8/ 20/ 28 (-EU)

LTE-FDD: B2/ 4/ 5/ 12/ 13/ 66 (-NA)







Installation:

1. Red wire connects to positive 8V-90V。

2. Black wire connects to ground

3. Yellow wire connects to relay device. (should select relay according to vehicle battery voltage)

4. Green wire connects to ACC or other alarm devices (that is to connect 8V-60V storage battery or impulse to access ACC and alarm mode)



Main features:

  1. Small size and easy installing
  2. Support GPS and Beidou system
  3. Fast and accurate locating
  4. Static drift suppression
  5. Store data automatically when no GPRS communication
  6. Built-in battery (support 5 hours working time after external power is off)
  7. Low power consumption
  8. Built-in reset controller ensures system not get stuck
  9. Support UDP & TCP communication
  10. Waterproof



Main functions:

  • Basic functions:

       Position query

       Alarm modes

       Geo fence

       Engine ignition detection

       Remote control engine power

       Mileage query and correction

       Power saving mode

       SOS (optional)

  • Settings:

       Data upload interval

       Time zone

       Car plate name

       SMS & GPRS switch

       Alarm SMS switch

       DNS

       IP & port

       TCP & UDP switch

  • Alarms:

       External power cut alarm

       Vibration alarm

       Movement alarm

       Geo fence alarm

       Over speed alarm

       Low battery level alarm

       SOS alarm (optional)

  • Power saving mode:

       Sleep by time

       Wake up by shock sensor

  • Checkings:

       Firmware version

       SIM card ICCID

       Device working status

       IMEI

  • Network functions:

       PC web/APP tracking

       Real time tracking

       Alarm record

       History play back
